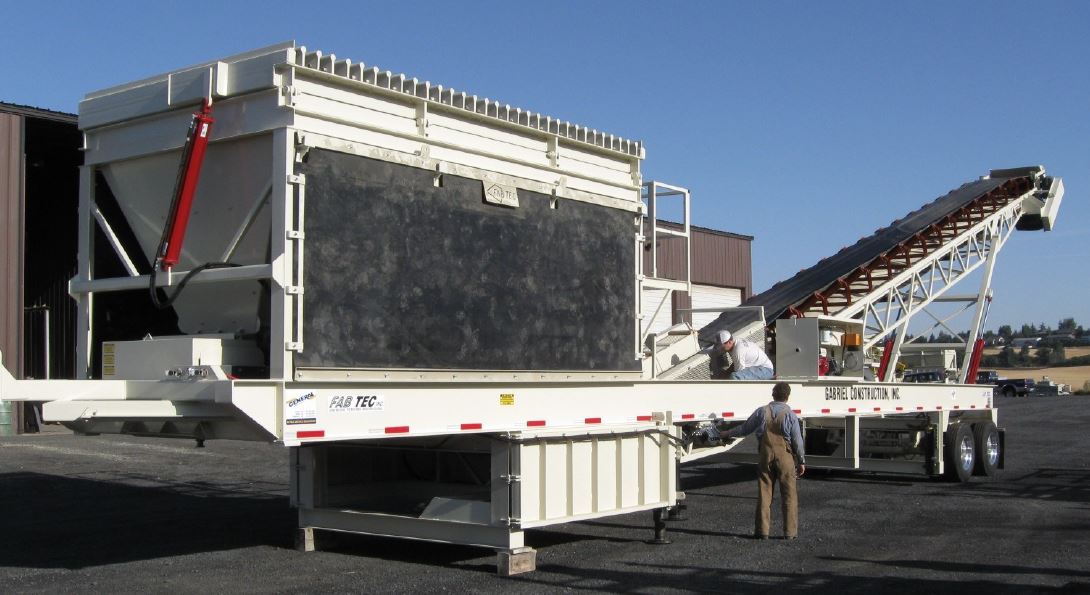

Fab Tec Portable Belt Feeder

For over 25 years Fab Tec Belt Feeders have been proving that if aggregate equipment is built tough, it will work tough in a variety of demanding applications.

12 OR 15 C.Y. Hopper

• 3/8” Plate
• Adjustable Wt. feed gate
• 14 ft wide separating grizzly

Hydraulic Dump Grizzly

• Grizzly bars 3/4″x6″ FB and 1 1⁄2″ round.
• 10 HP Vickers V20 pump with spool valve
• 4″ Bore x 36″ stroke cylinders
• Hydraulic tank with filter protection

36″ x 17′ ft Belt Feeder

• 20 HP Teco Motor
• Falk shaft mount reducer
• Dodge SCM bearings,
• 3 ply belt with 1/4″ cover.

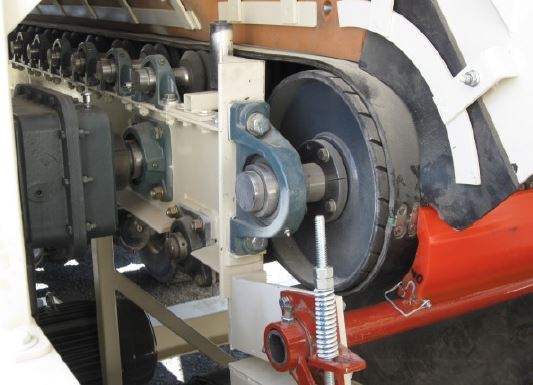

• 16” vulcanized lagged head pulley self cleaning wing tail pulley.

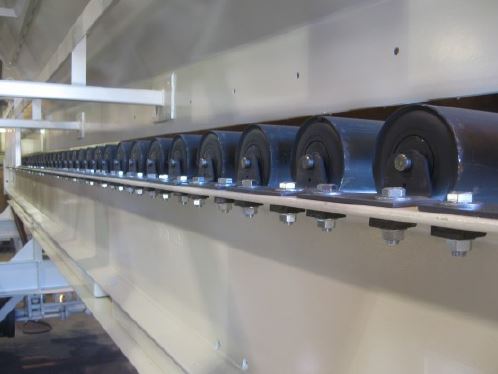

• 12″ Centers on CEMA C sealed carrier rollers

Main Frame

• W14 x 30 wide flange main beam
• 22,500 lb. axle w/ 11.00 x 22.5 dual tires on 10 hole hub piloted wheels
• Hutch leaf spring suspension
• Air brakes, light and mud flaps

Standard Duty Options

• Solid state variable speed controller
• Feeder without grizzly
• Fold down side panels

Optional Heavy Duty Feeder Includes

• Fold down side panels
• Heavy duty 16 ft grizzly and 16 ft hopper
• W16 Wide flange main beam
