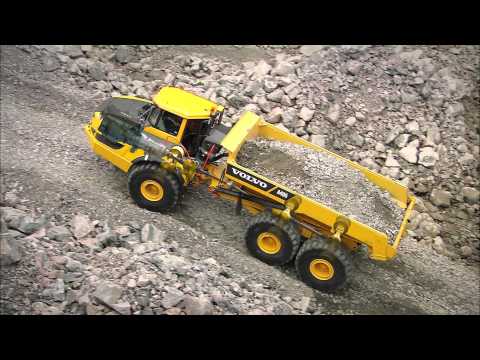

Volvo A35G

Main Specs

• Heaped Capacity 27.7 yd³ (21.2 m³)
• Payload 76059 lbs (34500 kg)

Engine

Drivetrain

Performance

Dimensions

Driveline

• Engine Manufacturer Volvo
• Engine Model D13J
• Number Of Cylinders 6
• After Treatment System 3 Selective Catalytic Reduction
• Displacement 781 Inches³ (12.8 ltr)
• Rated Speed 1900 rpm
• Engine Output - Net 447 hp (333 kW)
• Engine Output - Gross 451 hp (336 kW)
• Torque 1775 lbf / ft (2407 Nm)
• Drive Configuration 6 x 6
• Final Drive Planetary
• Transmission Type Powershift
• Traction Control Yes
• Front Differential Locking
• Second Axle Differential Locking
• Third Axle Differential Locking
• Centre Transfer Differential Locking
• Tire Size - Standard 26.5 R25
• Tire Type - Standard Radial
• Front Suspension - Type 3 Point
• Front Suspension Rubber Bushing / Shock Absorber
• Rear Suspension - Type 3 Point Bogie Beam
• Rear Suspension 3 Point
• Service Brake - Type Wet Multi Disc

Dimensions

• Length - Overall 36 ft 8 in (11180 mm)
• Height - Over Cab 11 ft 8 in (3547 mm)
• Height - Max 11 ft 8 in (3547 mm)
• Ground Clearance 20 inches (500 mm)
• Width Over Tires 10 ft 7 in (3221 mm)
• Width - Transport 10 ft 7 in (3221 mm)
• Width - Operating 10 ft 7 in (3221 mm)
• Wheelbase 17 ft 11 in (5488 mm)
• Length - Body 18 ft 3 in (5568 mm)
• Loading Height 9 ft 11 in (3014 mm)
• Full Dump Height 23 ft 9 in (7236 mm)
• Hoist - Type Twin, 1-Stage
• Dump Angle 72 °
• Approach Angle 23.6 °
• Articulation Angle 45 ± °
• Turning Radius - Outside 29 ft 1 in (8866 mm)
• Turning Radius - Inside 14 ft 6 in (4416 mm)

Capacities

• Fuel Tank 126.8 gallons (US) (480 ltr)
• Heaped Capacity 27.7 yd³ (21.2 m³)

Performance

• Cycle Time - Raise 12 s
• Unladen Axle Load - Front 34613 lbs (15700 kg)
• Unladen Axle Load - Centre 14991.5 lbs (6800 kg)
• Unladen Axle Load - Rear 14991.5 lbs (6800 kg)
• Unladen Axle Load - Centre + Rear 29983 lbs (13600 kg)
• Laden Axle Load - Front 42329 lbs (19200 kg)
• Laden Axle Load - Centre 49163 lbs (22300 kg)
• Laden Axle Load - Rear 49163 lbs (22300 kg)
• Laden Axle Load - Centre + Rear 98326 lbs (44600 kg)
• Front - Unladen 19.1 PSI (132 kPa)
• Rear - Unladen 7.8 PSI (54 kPa)
• Front - Laden 22.9 PSI (158 kPa)
• Rear - Laden 26.5 PSI (183 kPa)
• Speed - Forward Maximum 35.4 mph (57 kph)
• Speed - Reverse Maximum 11.2 mph (18 kph)

Weights

• Net Weight 64595 lbs (29300 kg)
• Payload 76059 lbs (34500 kg)
• Gross Weight 140655 lbs (63800 kg)
